DIVISION 09 // VOLT-CORE // MULTI-LAYER PCB & POWER

Hardware & Electronics

Custom multi-layer PCBs, 48V SiC/GaN motor drives, and industrial power distribution.

Full-stack electronic hardware engineering from schematic capture and high-speed impedance-controlled PCB layout to 48V 120A Field-Oriented Control (FOC) servo drives, smart LiFePO₄ BMS boards, and EMC-compliant PCBA production.

PCB STACKUP
2 – 12 Layer · 4 oz Cu
MOTOR DRIVE
48V · 120A Peak FOC
HIGH SPEED
PCIe · MIPI-CSI2 · GbE
COMPLIANCE
CE · FCC · IEC 61000 EMC
START ENGINEERING CONSULTATION→INSPECT SUBSYSTEM MODULES
PRODUCTION HARDWARE // DIV-09 // HIGH-CURRENT PCB & POWER SYSTEMSSTATUS: ONLINE

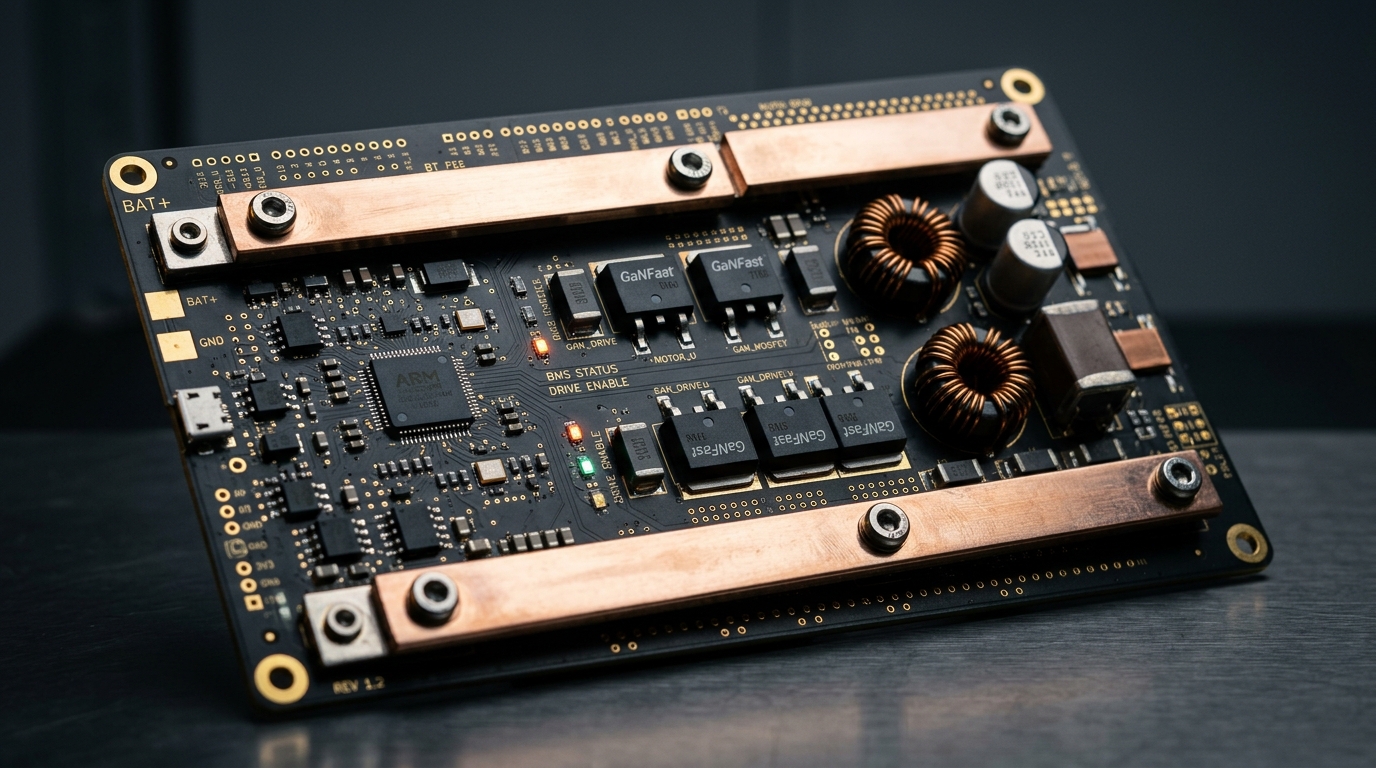

Hardware & Electronics — VOLT-CORE // MULTI-LAYER PCB & POWER by Infinitude Robotics
PRIMARY BENCHMARK
8-LAYER HEAVY COPPER PCB
VOLT-CORE // MULTI-LAYER PCB & POWER
INTEGRATION READY
NATIVE LINK WITH NEXUS M2 AMR & TITAN A6 ROBOTIC ARMS
ISO / CE INDUSTRIAL STANDARD
01 — ARCHITECTURAL SUBSYSTEMS

ENGINEERED FROM FIRSTPRINCIPLES UP.

SUBSYSTEM 01 // DIV-09 // HIGH-CURRENT PCB & POWER SYSTEMS98.4% EFFICIENCY

48V SiC / GaN High-Efficiency Servo Drives

Ultra-low RDS(on) MOSFET bridges with isolated current shunts deliver 98.4% efficiency and cool thermal performance.

INFINITUDE STACK VERIFIED● ACTIVE
SUBSYSTEM 02 // DIV-09 // HIGH-CURRENT PCB & POWER SYSTEMSIMPEDANCE ±5%

Jetson Orin & Compute Som Carrier Boards

Custom industrial carrier boards integrating 4× GMSL2/MIPI cameras, dual GbE, CAN-FD, and M.2 NVMe in compact footprints.

INFINITUDE STACK VERIFIED● ACTIVE
SUBSYSTEM 03 // DIV-09 // HIGH-CURRENT PCB & POWER SYSTEMSIEC 61508 SIL-3

Dual-Channel Hardwired STO & BMS Protection

Redundant safety relay chains, galvanic isolation, and TVS surge suppression built for harsh industrial floors.

INFINITUDE STACK VERIFIED● ACTIVE
TURNKEY ENGINEERING DELIVERABLES
Schematic design & multi-layer Altium/KiCad PCB layout (high-speed differential pairs + heavy copper power)
Custom 24V–96V BLDC/PMSM Field-Oriented Control (FOC) servo driver boards with regenerative braking
Smart Battery Management Systems (BMS), solid-state power distribution & redundant E-stop safety relays
DFM/DFA optimization, automated SMT assembly (PCBA), flying-probe testing & thermal/EMC validation
PRIMARY PRODUCTION DEPLOYMENTS
01 · Custom BLDC / Servo Motor ControllersPRODUCTION READY
02 · NVIDIA Jetson & SoM Carrier BoardsPRODUCTION READY
03 · 48V Smart LiFePO₄ BMS & ChargersPRODUCTION READY
04 · Industrial Sensor & I/O Distribution PCBsPRODUCTION READY
